CalcSimuEden Class Reference

#include <CalcSimuEden.hpp>

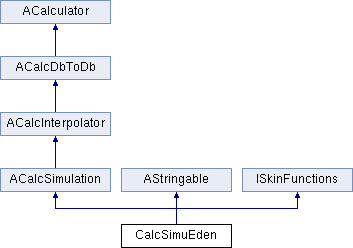

Inheritance diagram for CalcSimuEden:

Detailed Description

Multivariate multiphase propagation into a set of components constrained by initial conditions and fluid densities

Remarks

Directions are ordered as follows :

0: +X; 1: -X; 2: +Y; 3: -Y; 4: +Z(up); 5: -Z(down)

The coding of the matrix is:

facies + nfacies * fluid

Facies: 0 (Shale), 1 to nfacies, -1 (Cork)

Fluids: 0 (undefined), 1 to nfluids, -1 (No Fluid)

Fluids should be ordered by increasing weight

A Permeability variable is a value (>=1) which divides

the velocities. This variable is optional.

A Porosity variable is a value (in [0,1]) which multiplies

the volumes. This variable is optional.

Volume_max represents the volumic part of the invaded area:

it is always <= number of cells invaded.

Public Member Functions
	CalcSimuEden (int nfacies=0, int nfluids=0, int niter=1, int nbsimu=0, int seed=4324324, bool verbose=false)
	CalcSimuEden (const CalcSimuEden &r)=delete
CalcSimuEden &	operator= (const CalcSimuEden &r)=delete
virtual	~CalcSimuEden ()
virtual String	toString (const AStringFormat *strfmt=nullptr) const override
	Interface to AStringable. More...
int	isAlreadyFilled (int ipos) const override
	Interface to ISkinFunctions. More...
int	isToBeFilled (int ipos) const override
double	getWeight (int ipos, int idir) const override
void	setIndFacies (int indFacies)
void	setIndFluid (int indFluid)
void	setIndPerm (int indPerm)
void	setIndPoro (int indPoro)
void	setSpeeds (const VectorInt &speeds)
void	setNumberMax (double numberMax)
void	setShowFluid (bool showFluid)
void	setVolumeMax (double volumeMax)
Public Member Functions inherited from ACalcSimulation
	ACalcSimulation (int nbsimu, int seed=4324324)
	ACalcSimulation (const ACalcSimulation &r)=delete
ACalcSimulation &	operator= (const ACalcSimulation &r)=delete
virtual	~ACalcSimulation ()
int	getSeed () const
int	getNbSimu () const
void	setSeed (int seed)
void	setNbSimu (int nbsimu)
Public Member Functions inherited from ACalcInterpolator
	ACalcInterpolator ()
	ACalcInterpolator (const ACalcInterpolator &r)=delete
ACalcInterpolator &	operator= (const ACalcInterpolator &r)=delete
virtual	~ACalcInterpolator ()
void	setModel (Model *model)
void	setNeigh (ANeigh *neigh)
Model *	getModel () const
ANeigh *	getNeigh () const
bool	hasModel (bool verbose=true) const
bool	hasNeigh (bool verbose=true) const
Public Member Functions inherited from ACalcDbToDb
	ACalcDbToDb (bool mustShareSameSpaceDimension=true)
	ACalcDbToDb (const ACalcDbToDb &r)=delete
ACalcDbToDb &	operator= (const ACalcDbToDb &r)=delete
virtual	~ACalcDbToDb ()
void	setDbin (Db *dbin)
void	setDbout (Db *dbout)
void	setNamingConvention (const NamingConvention &namconv)
void	setMustShareSpaceDimension (bool mustShareSpaceDimension)
Db *	getDbin () const
Db *	getDbout () const
DbGrid *	getGridin () const
DbGrid *	getGridout () const
bool	hasDbin (bool verbose=true) const
bool	hasDbout (bool verbose=true) const
bool	isGridIn (bool verbose=true) const
bool	isGridOut (bool verbose=true) const
Public Member Functions inherited from ACalculator
	ACalculator ()
	ACalculator (const ACalculator &r)=delete
ACalculator &	operator= (const ACalculator &r)=delete
virtual	~ACalculator ()
bool	run ()
Public Member Functions inherited from AStringable
	AStringable ()
	AStringable (const AStringable &r)
AStringable &	operator= (const AStringable &r)
virtual	~AStringable ()
virtual void	display (const AStringFormat *strfmt=nullptr) const final
virtual void	display (int level) const final
Public Member Functions inherited from ISkinFunctions
	ISkinFunctions ()
virtual	~ISkinFunctions ()

Constructor & Destructor Documentation

CalcSimuEden() [1/2]

CalcSimuEden::CalcSimuEden	(	int	nfacies = 0,
		int	nfluids = 0,
		int	niter = 1,
		int	nbsimu = 0,
		int	seed = 4324324,
		bool	verbose = false
	)

CalcSimuEden() [2/2]

CalcSimuEden::CalcSimuEden ( const CalcSimuEden &  r )

delete

~CalcSimuEden()

CalcSimuEden::~CalcSimuEden ( )

virtual

Member Function Documentation

getWeight()

double CalcSimuEden::getWeight ( int  ipos, int  idir  ) const

overridevirtual

Returns the weight of a cell in a given direction

Returns

The weight

Parameters

[in]	ipos	Cell location
[in]	idir	Direction value

Reimplemented from ISkinFunctions.

isAlreadyFilled()

int CalcSimuEden::isAlreadyFilled ( int  ipos ) const

overridevirtual

Interface to ISkinFunctions.

Check if the cell is already filled with fluid

Returns

1 if the cell (filled with facies) is already filled with Fluid

Parameters

[in]

ipos

Absolute grid index of the input grid node

Implements ISkinFunctions.

isToBeFilled()

int CalcSimuEden::isToBeFilled ( int  ipos ) const

overridevirtual

Check if the cell can be filled with fluid

Returns

1 if the cell (filled with facies) can be filled with Fluid

Parameters

[in]

ipos

Absolute grid index of the input grid node

Implements ISkinFunctions.

operator=()

CalcSimuEden& CalcSimuEden::operator= ( const CalcSimuEden &  r )

delete

setIndFacies()

void CalcSimuEden::setIndFacies ( int  indFacies )

inline

setIndFluid()

void CalcSimuEden::setIndFluid ( int  indFluid )

inline

setIndPerm()

void CalcSimuEden::setIndPerm ( int  indPerm )

inline

setIndPoro()

void CalcSimuEden::setIndPoro ( int  indPoro )

inline

setNumberMax()

void CalcSimuEden::setNumberMax ( double  numberMax )

inline

setShowFluid()

void CalcSimuEden::setShowFluid ( bool  showFluid )

inline

setSpeeds()

void CalcSimuEden::setSpeeds ( const VectorInt &  speeds )

inline

setVolumeMax()

void CalcSimuEden::setVolumeMax ( double  volumeMax )

inline

toString()

String CalcSimuEden::toString ( const AStringFormat *  strfmt = nullptr ) const

overridevirtual

Interface to AStringable.

Reimplemented from AStringable.

---

The documentation for this class was generated from the following files:

• include/Simulation/CalcSimuEden.hpp
• src/Simulation/CalcSimuEden.cpp
